Shear Studs

Design of shear studs for continuous and simple spans according to AASHTO LRFD, 3rd Edition (2004). English units.

Screenshots

Shear studs - forces acting on the shear studs.
Figure 1: Sketch of the forces acting on the interface between the girder and the slab

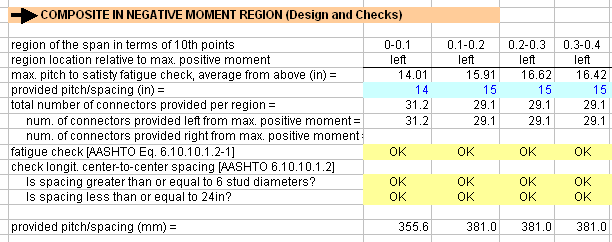

Shear studs design results.
Figure 2: Results for detailed calculations at 10th points along the girder
